Specifications:

• Minimum height: 2,450mm.
• Max height: 23,850mm with 100mm increments.
• Operating door height C: 1,950mm (depending on height).

Main feature of Logimat:

• Tray load capacity: up to 700kg.
• Machine load: up to 80 tons.
• The rod and gear drives are equipped with an automatic lubrication system, which provides preventive maintenance every time the elevator moves.
• Logimat: is a compact, automatic 1-part system, simultaneously taking care of storage and picking functions.
• Works on the principle of goods to person, saving time and money because employees do not need racks at different distances to pick up goods and instead spend time processing the next order.
• Safe working environment, do not take stairs or use ladders to pick up goods..
• The internal pulley system should be maintained at least 1 time/ 1 year for single shift, 2 times/ 1 year for double shift. When something goes wrong can be done remotely and repaired.
• Suitable for small and medium-sized goods, such as health and beauty care products, spare parts, electronic parts, luxury goods, raw materials, and other goods or supplies in manufacturing.

Exclusive features of Logimat:

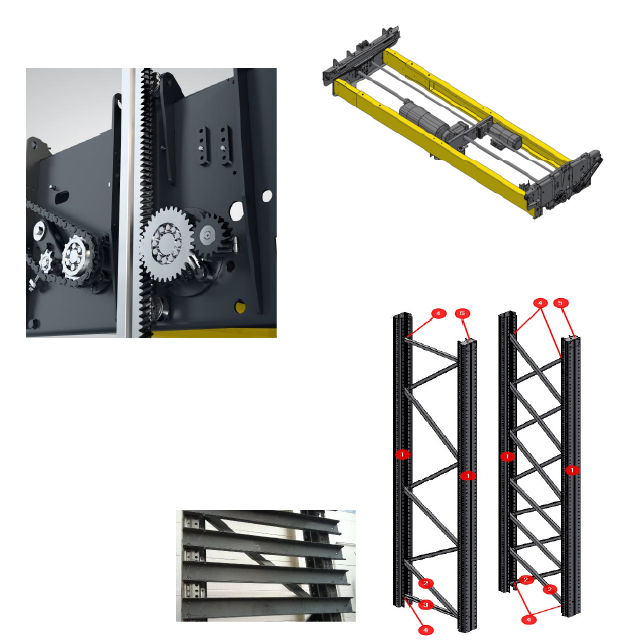

• The gear system and tooth rods operate smoothly, requiring little maintenance.
• Logitilt provides the ability to take goods handy by reducing the user's reach for items.
• Optimize storage space and weight.
• Logiwork adjusts the height of the transfer tray horizontally to the height used by the employee.
• PD container chain with common depth of 800mm ensures optimised use of storage space.
