Introduce

The R3000 rack includes a flexible cavity size adjustable frame system. This is a type of static rack, used in single or multi-level systems. This product is often used to store records, containers, cartons, or clothing. Static shelves save space, time and cost.

Highlights

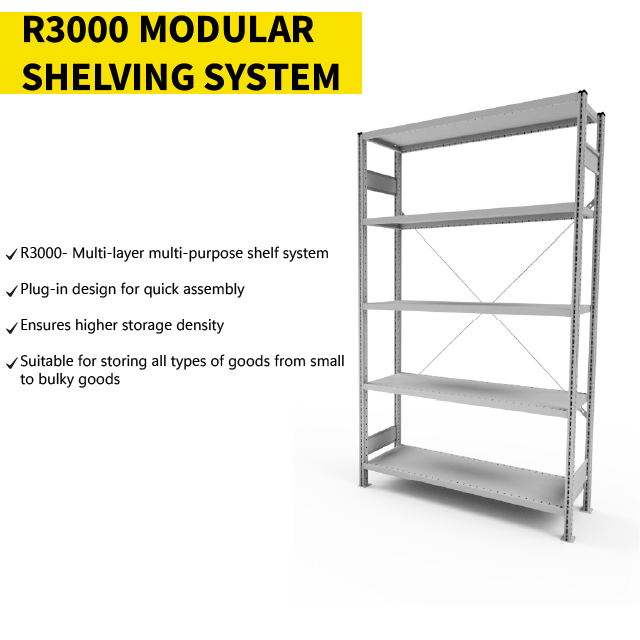

The R3000 modular rack system provides a frame system configuration for flexible cavity size adjustment. The extreme versatility of this system makes it suitable for almost any storage or warehousing application.

Pre-assembled support frames made from high-quality galvanized steel are available at various heights for single-storey and multi-storey buildings. They are designed for quick assembly in place, bracing with cross or horizontal beams.

The system offers complete flexibility with adjustable shelves or horizontal beams over a distance of 53mm, the height of the mezzanine floor can be set to suit individual requirements, to combine sprinklers, air conditioning, lighting and office, etc.

Composition

• Windshield.
• Exhaust pipe.
• Bulky parts: Store bulky parts such as doors, bonnets, bumpers.
• Wire mesh walls.
• Multi-purpose brackets.
• Safety gates.

Accessories and options

• Mesh doors: For restricted access to protected storage areas or office spaces of warehouses.
• Intermediate shelving: Epoxy coating of various compartment widths, from 99mm to 1282mm.
• Intake port.
